1 Download the ACLIM2 repo & data

1.1 Clone the ACLIM2 repo

To run this tutorial first clone the ACLIM2 repository to your local drive:

1.1.1 Option 1: Use R

This set of commands, run within R, downloads the ACLIM2 repository and unpacks it, with the ACLIM2 directory structrue being located in the specified download_path. This also performs the folder renaming mentioned in Option 2.

    # Specify the download directory
    main_nm       <- "ACLIM2"

    # Note: Edit download_path for preference
    download_path <-  path.expand("~")
    dest_fldr     <- file.path(download_path,main_nm)

    url           <- "https://github.com/kholsman/ACLIM2/archive/main.zip"
    dest_file     <- file.path(download_path,paste0(main_nm,".zip"))
    download.file(url=url, destfile=dest_file)

    # unzip the .zip file (manually unzip if this doesn't work)
    setwd(download_path)
    unzip (dest_file, exdir = download_path,overwrite = T)

    #rename the unzipped folder from ACLIM2-main to ACLIM2
    file.rename(paste0(main_nm,"-main"), main_nm)
    setwd(main_nm)


# Caption: Timeseries of season Aug East Bering Sea bottom temp or 400m temp (which ever is shallower) for the 1955-2099 period. The simulations are forced using historical emission (1955 to 2014) and SSP1-2.6 scenario for future projection (2015 to 2099). A 1-year running mean is applied. Figures show, in colors, CESM2-WACCM ensemble mean, in light grey, the spread of all the CMIP6 models, and in medium grey, and dark grey, 80% and 50% the spread of all the CMIP6 members, respectively. Left panel shows the mean values and right panel shows the anomalies relative to the 1980-2013 climatology.

1.1.2 Option 2: Download the zipped repo

Download the full zip archive directly from the ACLIM2 Repo using this link: https://github.com/kholsman/ACLIM2/archive/main.zip, and unzip its contents while preserving directory structure.

Important! If downloading from zip, please rename the root folder from ACLIM2-main (in the zipfile) to ACLIM2 (name used in cloned copies) after unzipping, for consistency in the following examples.

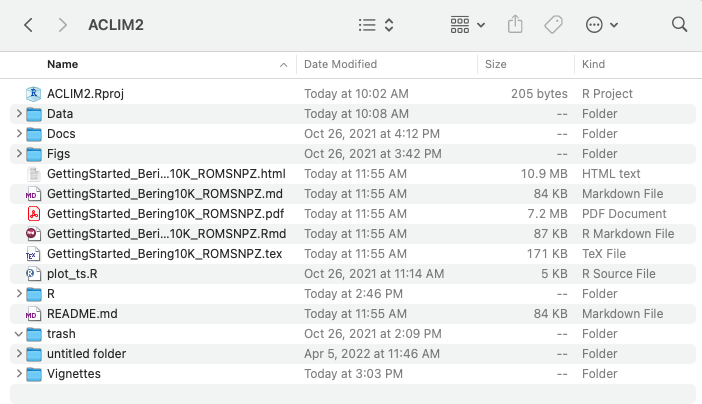

Your final folder structure should look like this:

1.1.3 Option 3: Use git commandline

If you have git installed and can work with it, this is the preferred method as it preserves all directory structure and can aid in future updating. Use this from a terminal command line, not in R, to clone the full ACLIM2 directory and sub-directories:

    git clone https://github.com/kholsman/ACLIM2.git

1.2 Get the data

–>

  • Go to the google drive and download the zipped file with the R ACLIM2 indices ACLIM2_indices.zip:

  • 00_ACLIM_shared > 02_Data > Newest_Data(use this) > unzip_and_put_in_dat_out_folder_CMIP6

  • 00_ACLIM_shared > 02_Data > Newest_Data(use this) > unzip_and_put_in_dat_out_folder_CMIP5

  • Unzip K29P19_CMIP5.zip or K29P19_CMIP6.zip files move the K29P19_CMIP5 or K29P19_CMIP6 folders to your local folder ACLIM2/Data/out. The result should be the following folder structure on your local computer:

  • ACLIM2/Data/out/K29P19_CMIP6/allEBSmeans: main folder with annual, monthly, seasonal, and survey replicated level 4 ACLIM indices

  • ACLIM2/Data/out/K29P19_CMIP6/BC_ACLIMregion: Weekly x Strata based indices, including delta and bias corrected values (these are “rolled up” to become strata AREA weighted mean vals in the allEBSmeans folder).

  • ACLIM2/Data/out/K29P19_CMIP6/BC_ACLIMsurveyrep: Survey replicated indices at each station, including delta and bias corrected values (these are “rolled up” to become average across station mean vals in the allEBSmeans folder).

  • ACLIM2/Data/out/K29P19_CMIP5/allEBSmeans: as above but for CMIP5

1.3 Set up the Workspace

Open R() and used ‘setwd()’ to navigate to the root ACLIM2 folder (.e.g, ~/mydocuments/ACLIM2)

    # set the workspace to your local ACLIM2 folder
    # e.g., "/Users/kholsman/Documents/GitHub/ACLIM2"
    # setwd( path.expand("~/Documents/GitHub/ACLIM2") )

    # --------------------------------------
    # SETUP WORKSPACE
    tmstp  <- format(Sys.time(), "%Y_%m_%d")
    main   <- getwd()  #"~/GitHub_new/ACLIM2"

    # loads packages, data, setup, etc.
    suppressWarnings(source("R/make.R"))
## ------------------------------
## ALIM2/R/setup.R settings
## ------------------------------
## data_path            : D:/romsnpz/roms_for_public
## Rdata_path           : D:/romsnpz/2022_10_17_Rdata/roms_for_public
## redownload_level3_mox: FALSE
## update.figs          : FALSE
## load_gis             : FALSE
## update.outputs       : TRUE
## update.figs          : FALSE
## dpiIN                : 150
## update.figs          : FALSE
## ------------------------------
## ------------------------------
##
## The following datasets are public, please cite as Hermann et al. 2019 (v.H16) and Kearney et al. 2020 (v.K20) :
## B10K-H16_CMIP5_CESM_BIO_rcp85
## B10K-H16_CMIP5_CESM_rcp45
## B10K-H16_CMIP5_CESM_rcp85
## B10K-H16_CMIP5_GFDL_BIO_rcp85
## B10K-H16_CMIP5_GFDL_rcp45
## B10K-H16_CMIP5_GFDL_rcp85
## B10K-H16_CMIP5_MIROC_rcp45
## B10K-H16_CMIP5_MIROC_rcp85
## B10K-H16_CORECFS
## B10K-K20_CORECFS
##
## The following datasets are still under embargo, please do not share outside of ACLIM:
## B10K-K20P19_CMIP6_cesm_historical
## B10K-K20P19_CMIP6_cesm_ssp126
## B10K-K20P19_CMIP6_cesm_ssp585
## B10K-K20P19_CMIP6_gfdl_historical
## B10K-K20P19_CMIP6_gfdl_ssp126
## B10K-K20P19_CMIP6_gfdl_ssp585
## B10K-K20P19_CMIP6_miroc_historical
## B10K-K20P19_CMIP6_miroc_ssp126
## B10K-K20P19_CMIP6_miroc_ssp585

2 Read this before you start

2.1 Overview

The ACLIM2 github repository contains R code and Rdata files for working with netcdf-format data generated from the downscaled ROMSNPZ modeling of the ROMSNPZ Bering Sea Ocean Modeling team; Drs. Hermann, Cheng, Kearney, Pilcher,Ortiz, and Aydin. The code and R resources described in this tutorial are maintained by Kirstin Holsman as part of NOAA’s ACLIM project for the Bering Sea. See Hollowed et al. 2020 for more information about the ACLIM project.

This document provides an overview of accessing, plotting, and creating bias corrected indices for ACLIM2 based on CMIP6 (embargoed for ACLIM2 users until 2023) and CMIP5 (publicly available) simulations. This guide assumes analyses will take place in R() and that users have access to the data folder within the ACLIM2 shared drive. For more information also see the full tutorial (“GettingStarted_Bering10K_ROMSNPZ” available at the bottom of this repo page.

Important! A few key things to know before getting started are detailed below. Please review this information before getting started.

2.2 ROMSNPZ versions

Important! ACLIM1 CMIP5 and ACLIM2 CMIP5 and CMIP6 datasets use different base models.

There are two versions of the ROMSNPZ model:

  1. ACLIM1 an older 10-depth layer model used for CMIP5 (“H-16”)
  2. ACLIM2 a new 30-depth layer model used for CMIP6 (“K20” or “K20P19”)

The models are not directly comparable, therefore the projections should be bias corrected and recentered to baselines of hindcasts of each model (forced by “observed” climate conditions). i.e. CMIP5 and CMIP6 have corresponding hindcasts:

  1. Hindcast for CMIP5 “H19” –> H16_CORECFS
  2. Hindcast for CMIP5 “K20P19” –> H16_CORECFS
  3. Hindcast for CMIP6 “K20P19” –> K20_CORECFS

In addition for CMIP6 “historical” runs are available for bias correcting. We will use those below.

For a list of the available simulations for ACLIM enter the following in R():

    # list of the climate scenarios
    data.frame(sim_list)

2.3 ROMSNPZ variables

For a list of the available variables from the ROMSNPZ:

    # Metadata for variables
    (srvy_var_def[-(1:5),])

2.4 Data outputs

Important! There are 2 types of post-processed data available for use in ACLIM.

The ROMSNPZ team has developed a process to provide standardized post-processed outputs from the large (and non-intuitive) ROMSNPZ grid. These have been characterized as:

  1. Level 1 (original ROMSNPZ U,V, grid, not rotated or corrected)
  2. Level 2 (lat long bi-weekly high res versions, shouldn’t be needed and are difficult to work with)
  3. Level 3 indices (depth corrected and area weighted means for each model variable; i.e., what we will mostly use)
    1. “ACLIMsurveyrep_”: groundifsh survey replicated (replicated in space and time)
    2. “ACLIMregion_”: weekly strata based averages

To get more information about each of these level 3 datasets enter this in R:

    # Metadata for Weekly ("ACLIMregion_...") indices
    head(all_info1)
    # Metadata for Weekly ("ACLIMsurveyrep_...") indices
    head(all_info2)

3 Indices & bias correction UPDATED

Summary

We recommend using the ‘mn_val’ column in the hindcast and either the ‘val_biascorrected’ or ‘val_delta’ column for projections.

use val_biascorrected’ or ‘val_delta’?

This will depend in part on the index and scale you are working at. For fine scale (weekly strata, or station specific, or finer) we recommend using the ‘val_delta’, i.e., the delta method. For the ACLIM2 spring sprint we are recommending the ‘val_biascorrected’ in order to align modeling output.

However,at the larger pooled scales there is very little difference between the two but a sensitivity analysis may be needed to determine if the choice makes a profound difference in projections. Following an in depth analysis of the effects of bias correction at the finer scales of model output we found that bias correction via the Ho et al. method can result in artifacts that impact final indices in unsatisfactory ways. The effects do not emerge as frequently when data are pooled at the annual or basin-wide scale but do occur at finer scales, especially when areas or time-period have values in the hindcast but the corresponding historical runs have only small values, resulting in amplification that is not found in the raw projection to historical time-series comparison. However the Ho et al. approach is better at re-scaling variance between projections and the hindcast, and preserves a more parsimonious variance structure in projections. Whereas, the delta method assumes equal variance between the hindcast and projection models (during the overlapping reference years 1980:2013 when overall variance should match) and does do not adjust projections if the corresponding historical variance is larger or smaller than the hindcast sigma. Applying the delta method adjustment at the smallest possible resolution of the indices (weekly or by station) minimizes the effects of superimposing the variance structure of the historical time-series on the projection.

The average weekly strata value per or the average station value (for survey replicated indices) across the reference years 1980-2013 were calculated for the hindcast and corresponding historical runs to determine the mean hindcast and mean historical values for bias correction; ‘mn_hind’ and ‘mn_hist’, respectively. We used the mgcv package to smooth weekly values ‘mgcv::gam(…bs=“cc”)’) across all reference years to remove artifacts (e.g. divide by 0) in the average (\(\bar{Y}^{hind}_{w,k}\) and \(\bar{Y}^{hist}_{w,k}\)) and variance (\(\sigma^{hist}_{w,k}\) and \(\sigma^{hind}_{w,k}\)) terms were predicted from the gam (without error; example for \(\bar{Y}^{hind}_{w,k}\)):

\[ \bar{Y}^{hind}_{w,k} = \mu+s(w, k = .8n)+\epsilon~~and~~\epsilon\sim N(0,\sigma)\]

Important! Note: the delta adjustment and the bias corrections were done on “raw” values which in some cases results in negative values (or <0 or >1 for proportion variables like ‘aice’). For these variables, values <0 were set to 0, >1 set to 1 as needed after (delta) bias correction.

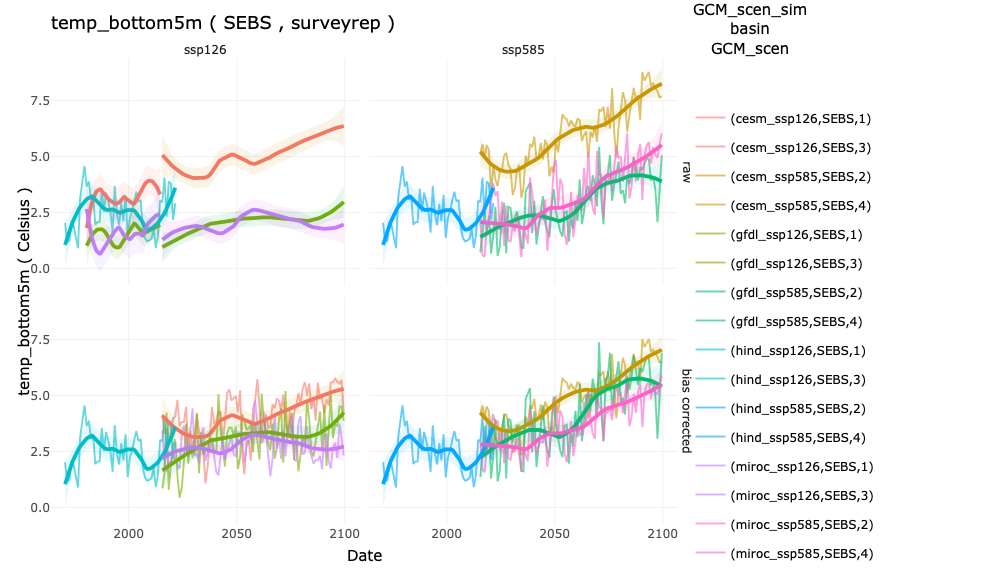

Raw (top row) and bias corrected (bottom row)bottom temperature indices based on survey replicated Level3 outputs for the SEBS

ACLIM2 Indices correction methods

###Delta method The next step creates ACLIM2 indices (i.e., Level4) based on the Level3 output for each hindcast, historical run, and CMIP6 projection. The script below delta adjusts or bias corrects each projected index using the corresponding historical run. (such that projections are \(\Delta\) from historical mean values for the reference period deltayrs <- 1980:2013 ).

Important! Note that for projections the ‘mn_val’ represents raw mean values, while ‘val_delta’ and ‘val_biascorrected’ are the adjusted values using scaling factor of 1 or SD_hind/SD_hist on a weekly basis (respectively).

Delta method correction was done on “raw” values which in some cases results in negative values (or <0 or >1 for proportion variables like ‘aice’). For these variables, values <0 were set to 0, >1 set to 1 as needed after the delta adjustment. Delta method adjustments were conducted at the weekly level for strata specific data and at the station level for survey replicated indices:

Such that (\(Y\)): \[{Y}^{fut'}_{t,k} =\bar{Y}^{hind}_{k,\bar{T}} +({Y}^{fut}_{t,k}-\bar{Y}^{hist}_{k,\bar{T}})\]

where \(\bar{Y}^{fut'}_{y,k}\) is the bias corrected variable \(k\) value for time-step \(t\) (e.g., year, month, or season), \(\bar{Y}^{hind}_{k,\bar{T}}\) is the mean value of the variable \(k\) during the reference period \(\bar{T}=[1980,2013]\) from the hindcast model, \(\sigma^{hind}_{k,\bar{T}}\) is the standard deviation of the hindcast during the reference period \(\bar{T}\), \(\sigma^{hist}_{k,\bar{T}}\) is the standard deviation of the historical run during tje reference period, \({Y}^{fut}_{t,k}\) is the value of the variable from the projection at time-step \(t\) and \(\bar{Y}^{hist}_{k,\bar{T}}\) is the average value from the historical run during reference period \(\bar{T}\).

###Bias correction

Bias correction was done on “raw” values which in some cases results in negative values (or <0 or >1 for proportion variables like ‘aice’). For these variables, values <0 were set to 0, >1 set to 1 as needed after bias correction. Bias correction adjustments were conducted at the weekly level for strata specific data and at the station level for survey replicated indices:

Such that (\(Y\)): \[{Y}^{fut'}_{t,k} =\bar{Y}^{hind}_{k,\bar{T}} +\left( \frac{\sigma^{hind}_{k,\bar{T}}}{\sigma^{hist}_{k,\bar{T}}}*({Y}^{fut}_{t,k}-\bar{Y}^{hist}_{k,\bar{T}}) \right )\]

where \(\bar{Y}^{fut'}_{y,k}\) is the bias corrected variable \(k\) value for time-step \(t\) (e.g., year, month, or season), \(\bar{Y}^{hind}_{k,\bar{T}}\) is the mean value of the variable \(k\) during the reference period \(\bar{T}=[1980,2013]\) from the hindcast model, \(\sigma^{hind}_{k,\bar{T}}\) is the standard deviation of the hindcast during the reference period \(\bar{T}\), \(\sigma^{hist}_{k,\bar{T}}\) is the standard deviation of the historical run during tje reference period, \({Y}^{fut}_{t,k}\) is the value of the variable from the projection at time-step \(t\) and \(\bar{Y}^{hist}_{k,\bar{T}}\) is the average value from the historical run during reference period \(\bar{T}\).

For log-normally distributed variables(\(Y\)): \[{Y}^{fut'}_{y,k} =e^{\ln\bar{Y}^{hind}_{k,\bar{T}} +\left( \frac{\hat{\sigma}^{hind}_{k,\bar{T}}}{\hat{\sigma}^{hist}_{k,\bar{T}}}*(\ln{Y}^{fut}_{t,k}-\ln\bar{Y}^{hist}_{k,\bar{T}}) \right )}\], where \(\hat\sigma^{hist}_{k,\bar{T}}\) and \(\hat\sigma^{hind}_{k,\bar{T}}\) are the standard deviation of the \(\ln\bar{Y}^{hist}_{k,t}\) and \(\ln\bar{Y}^{hind}_{k,t}\) during the reference period \(\hat{T}\) (respectively).

3.1 Weekly X strata indices

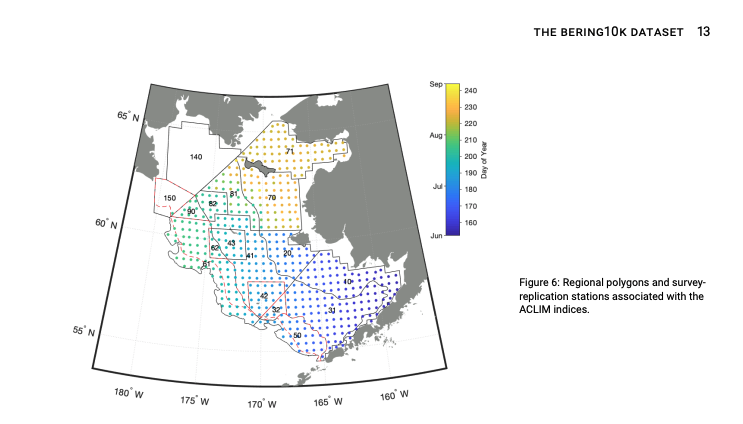

Uses the strata x weekly data (‘ACLIMregion’) to generate strata-specific averages in order to generate the strata area-weighted averages for each week \(w\) each year \(y\).

\[\bar{Y}_{k,y,w}= \frac{\sum^{n_s}_{l}(\frac{1}{n_i}\sum^{n_t}_{t}Y_{k,y,s,w,t})*A_s} {\sum^{n_s}_{s}{A_s}}\], where \(Y_{k,w,y,s,t}\) is the value of the variable \(k\) in strata \(s\) at time \(t\) in year \(y\), \(A_s\) is the area of strata \(s\), \(n_i\) is the number of stations in strata \(s\), and \(n_s\) is the number of strata \(s\) in each basin (NEBS or SEBS).

\(\bar{Y}_{w,y,k}\) was calculated for the hindcast, historical run, and projection time-series.

Projections \(\bar{Y}_{k,y,w}\) were bias corrected using the Ho et al. 2019 method and corresponding historical and hindcast values such that (and a scaling factor dependent on the variance of each):

\[\bar{Y}^{fut'}_{k,y,w} =\bar{Y}^{hind}_{w,k} +\left( \frac{\sigma^{hind}_{w,k}}{\sigma^{hist}_{w,k}}*(\bar{Y}^{fut}_{k,y,w}-\bar{Y}^{hist}_{w,k}) \right )\], where \(\bar{Y}^{hist}_{w,k}\) and \(\bar{Y}^{hind}_{w,k}\) are the average historical weekly values across years in the period (1980 to 2012 ; adjustable in R/setup.R).

Projections \(\bar{Y}_{k,y,w}\) were also delta corrected (assuming a scaling factor = 1) using the corresponding historical and hindcast values such that:

\[\bar{Y}^{fut'}_{k,y,w} =\bar{Y}^{hind}_{w,k} +\left( \frac{1}{1}*(\bar{Y}^{fut}_{k,y,w}-\bar{Y}^{hist}_{w,k}) \right )\], where \(\bar{Y}^{hist}_{w,k}\) and \(\bar{Y}^{hind}_{w,k}\) are the average historical weekly values across years in the period (1980 to 2012 ; adjustable in R/setup.R).

3.2 NESB & SEBS wide averaged indices

The average water column values for each variable from the ROMSNPZ model strata x weekly Level2 outputs (‘ACLIMregion’) were calculated and used to calculate the strata-area weighted mean value for the NEBS and SEBS weekly, monthly, seasonally, and annually. Similarly, for survey replicated (‘ACLIMsurveyrep’) Level2 outputs the average water column value for each variable at each station was calculated used to calculate the strata-area weighted mean value for the NEBS and SEBS annually. These indices were calculate for hindcast, historical, and projection scenarios, and used to bias correct the projections. More information on the methods for each can be found in the tabs below and the code in Appendix A following this section will re-generate the bias corrected indices. All of the bias corrected outputs can be found in the “Data/out/K20P19_CMIP6” folder.

The same approach was applied to the weekly strata data such that weekly strata values were calculated as:

\[\bar{Y}_{k,y,s,w}= \sum^{n_s}_{l}(\frac{1}{n_i}\sum^{n_t}_{t}Y_{k,y,s,w,t})\]

\[\bar{Y}^{fut'}_{k,s,y,w} =\bar{Y}^{hind}_{k,s,w} +\left( \frac{\sigma^{hind}_{k,s,w}}{\sigma^{hist}_{k,s,w}}*(\bar{Y}^{fut}_{k,s,y,w}-\bar{Y}^{hist}_{k,s,w}) \right )\], where \(\bar{Y}^{hist}_{k,s,w}\) and \(\bar{Y}^{hind}_{k,s,w}\) are the average historical weekly values across years in the period (1980 to 2012 ; adjustable in R/setup.R).Where the mean and variance terms were smoothed at the weekly and strata level (i.e., \[\bar{Y}^{hind}_{w,k}\] was predicted from the following gam() without error)

\[ \bar{Y}^{hind}_{k,s,w} = \mu+s(w, k = .8n)+\epsilon ~~and~~\epsilon\sim N(0,\sigma) \]

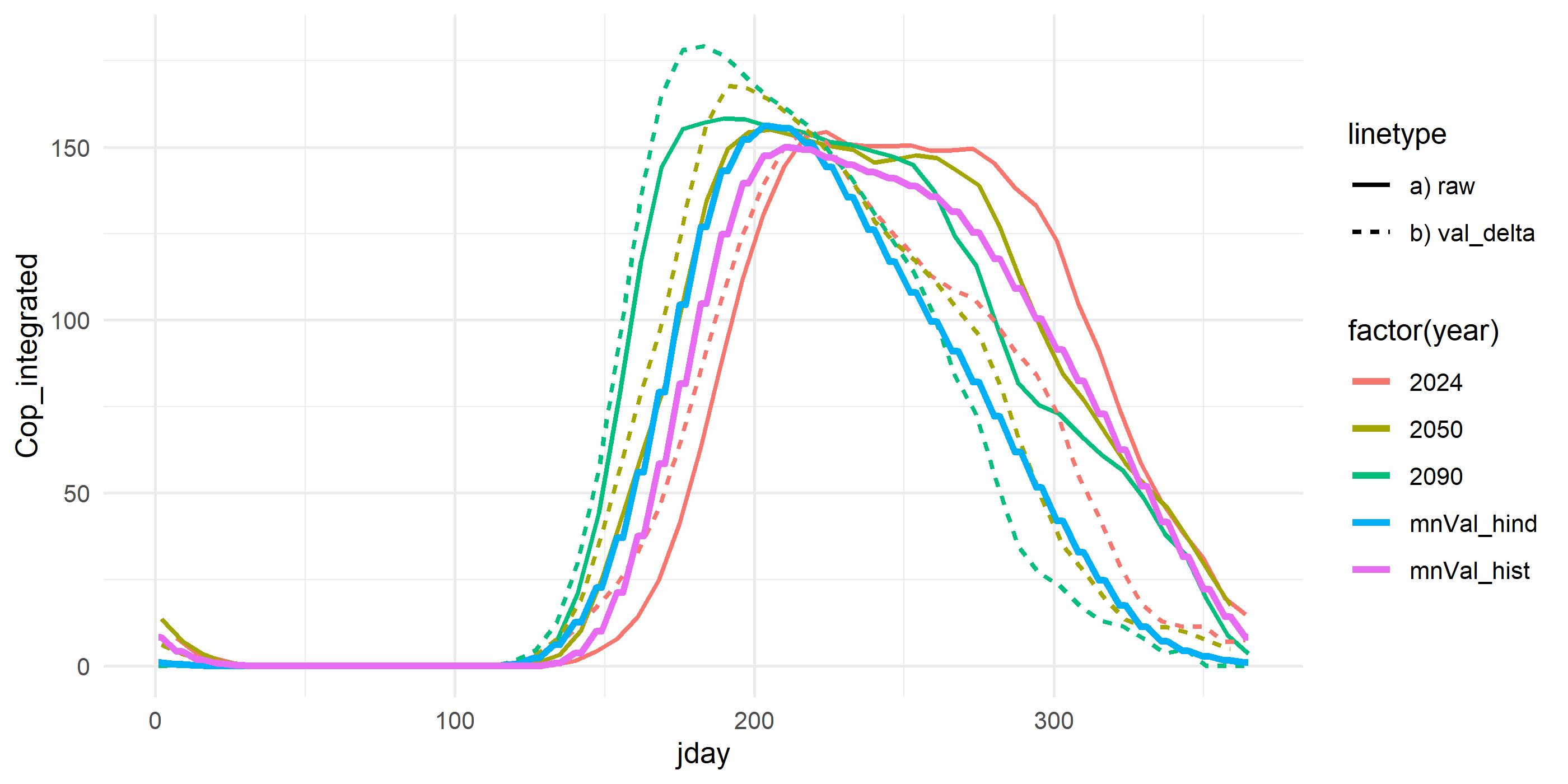

Delta corrected copepods using gam smoothed historical and hindcast climatology

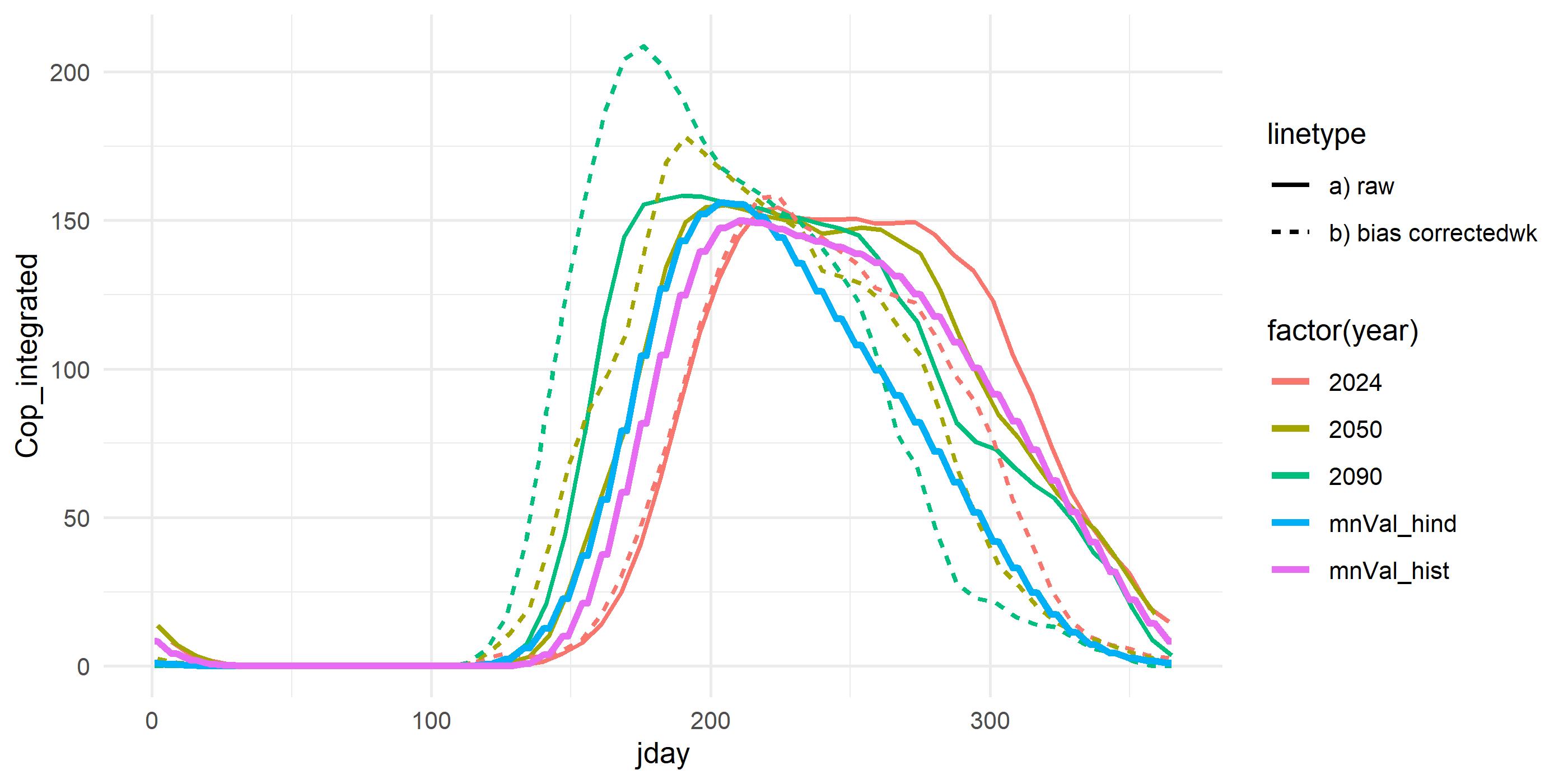

Bias corrected copepods using gam smoothed historical and hindcast climatology

3.3 Monthly indices

Using the bias corrected weekly or strata x weekly indices, we then generated monthly indices for each month \(m\) each year \(y\).

\[\bar{Y}_{k,y,m}= \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}_{k,y,w}\], where \(\bar{Y}_{w,y,k}\) are the weekly average indices for variable \(k\) in year \(y\) from the previous step ,\(n_w\) is the number of weeks in each month \(m\) as:

\[\bar{Y}^{fut'}_{k,y,m} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{fut'}_{k,y,w}\]
for area weighted SEBS and NEBS bias corrected values. Similarly we used the following for monthly strata values:
\[\bar{Y}^{fut'}_{k,s,y,m} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{fut'}_{k,s,y,w}\]

similarly NEBS and SEBS monthly averages and strata monthly averages for the hindcast were calculated as:

\[\bar{Y}^{hind}_{k,y,m} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{hind}_{k,y,w}\]

\[\bar{Y}^{hind}_{k,s,y,m} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{hind}_{k,s,y,w}\]

3.4 Seasonal indices

Using the bias corrected weekly or strata x weekly indices, we then generated seasonal indices for each season \(l\) each year \(y\).

\[\bar{Y}_{k,y,l}= \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}_{k,y,w}\], where \(\bar{Y}_{w,y,k}\) are the weekly average indices for variable \(k\) in year \(y\) from the previous step ,\(n_w\) is the number of weeks in each seasonal \(l\) as:

\[\bar{Y}^{fut'}_{k,y,l} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{fut'}_{k,y,w}\]
for area weighted SEBS and NEBS bias corrected values. Similarly we used the following for seasonal strata values:
\[\bar{Y}^{fut'}_{k,s,y,l} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{fut'}_{k,s,y,w}\]

similarly NEBS and SEBS seasonal averages and strata seasonal averages for the hindcast were calculated as:

\[\bar{Y}^{hind}_{k,y,l} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{hind}_{k,y,w}\]

\[\bar{Y}^{hind}_{k,s,y,l} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{hind}_{k,s,y,w}\]

3.5 Annual indices

Using the bias corrected weekly or strata x weekly indices, we then generated seasonal indices for each year \(y\).

\[\bar{Y}_{k,y}= \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}_{k,y,w}\], where \(\bar{Y}_{w,y,k}\) are the weekly average indices for variable \(k\) in year \(y\) from the previous step ,\(n_w\) is the number of weeks in each year \(y\) as:

\[\bar{Y}^{fut'}_{k,y} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{fut'}_{k,y,w}\]
for area weighted SEBS and NEBS bias corrected values. Similarly we used the following for annual strata values:
\[\bar{Y}^{fut'}_{k,s,y} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{fut'}_{k,s,y,w}\]

similarly NEBS and SEBS annual averages and strata annual averages for the hindcast were calculated as:

\[\bar{Y}^{hind}_{k,y} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{hind}_{k,y,w}\]

\[\bar{Y}^{hind}_{k,s,y} = \frac{1}{n_w}\sum^{n_w}_{w}\bar{Y}^{hind}_{k,s,y,w}\]

3.6 Annual survey rep. indices

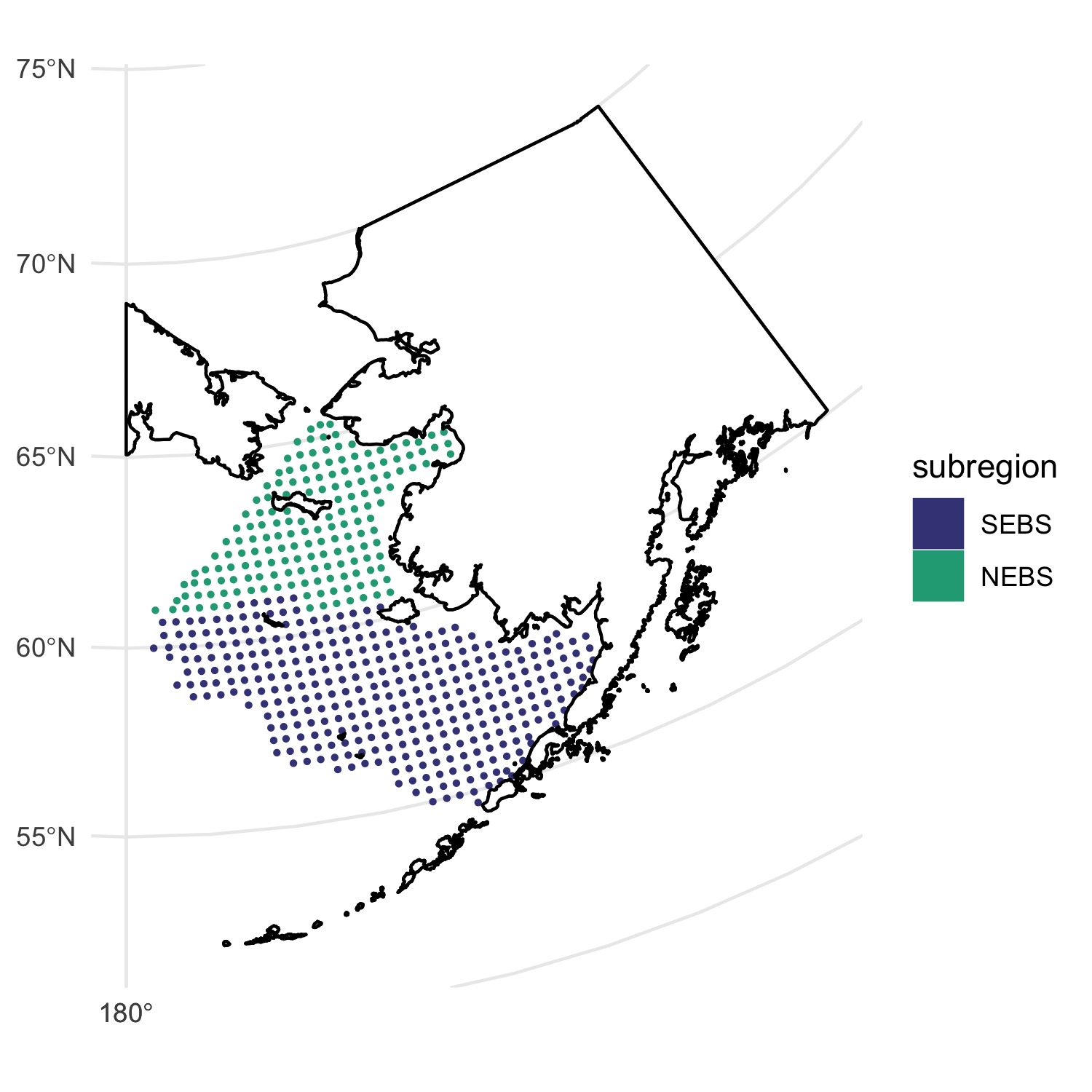

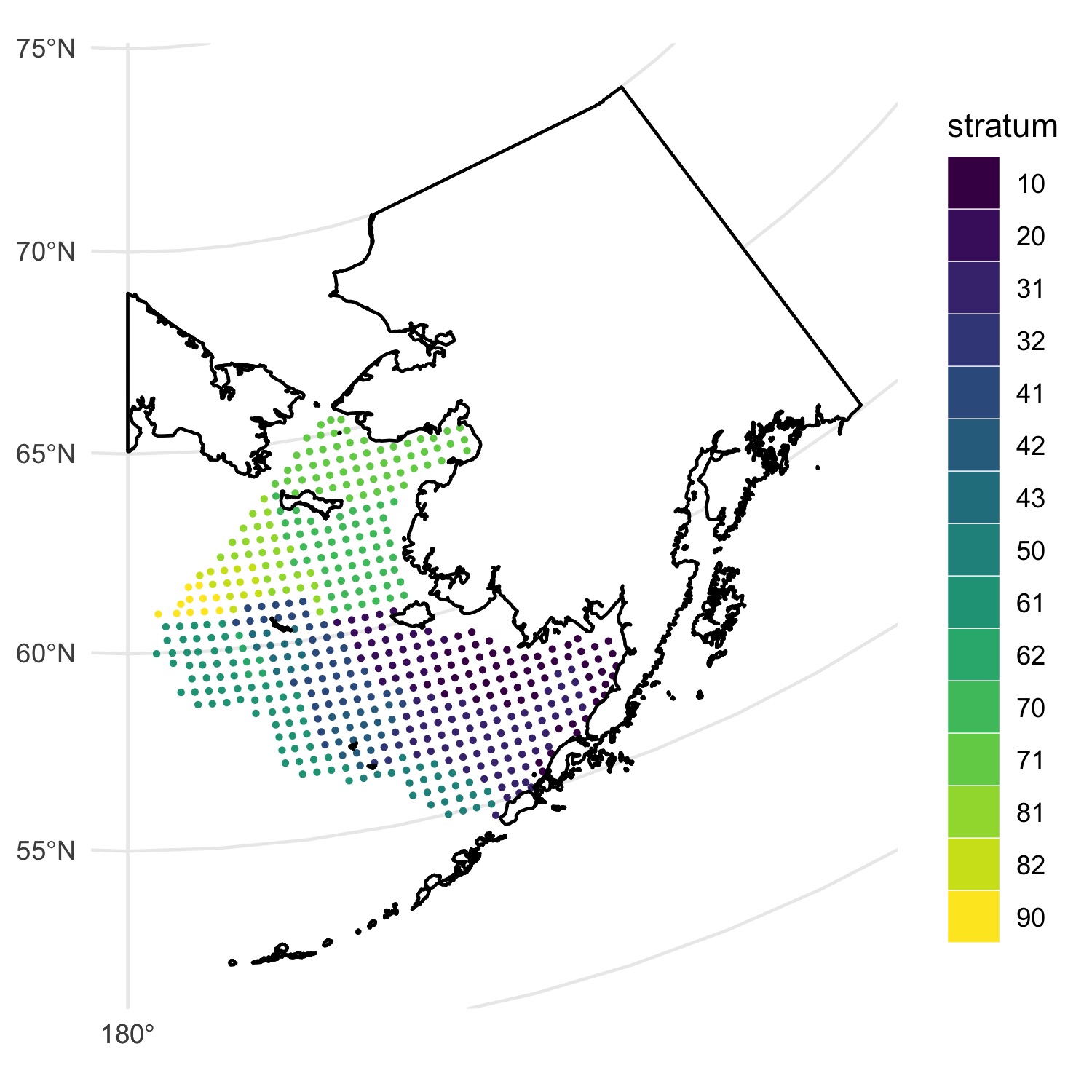

Uses the station specific survey replicated (in time and space) data (‘ACLIMsurveyrep’) to generate strata-specific averages in order to generate the strata area-weighted averages for each year \(y\).

\[\bar{Y}_{y,k}= \frac{\sum^{n_s}_{l}(\frac{1}{n_i}\sum^{n_i}_{i}Y_{k,y,s,i})*A_s} {\sum^{n_s}_{s}{A_s}}\], where \(Y_{k,y,s,i}\) is the value of the variable \(k\) at station \(i\) in strata \(s\) in year \(y\), \(A_s\) is the area of strata \(s\), \(n_i\) is the number of stations in strata \(s\), and \(n_s\) is the number of strata \(s\) in each basin (NEBS or SEBS).

\(\bar{Y}_{y,k}\) was calculated for the hindcast, historical run, and projection time-series. For projections \(\bar{Y}_{y,k}\) was bias corrected using the corresponding historical and hindcast values such that:

\[\bar{Y}^{fut'}_{y,k} =\bar{Y}^{hind}_{k} +\left( \frac{\sigma^{hind}_{k}}{\sigma^{hist}_{k}}*(\bar{Y}^{fut}_{y,k}-\bar{Y}^{hist}_{k}) \right )\], where \(\bar{Y}^{hind}_{k}\) and \(\bar{Y}^{hist}_{k}\) are the average historical values across years in the reference period (1980 to 2012 ; adjustable in R/setup.R).

Appendix A includes the code used to generate the ACLIM2 indices and bias correct them. That code can be run to re-make the indices if you like but takes approx 30 mins a CMIP to run.

4 Plot & concat Indices

The following code will open an interactive shiny() app for exploring the indices. You can also view this online at (kkh2022.shinyapps.io/ACLIM2_indices)[https://kkh2022.shinyapps.io/ACLIM2_indices/].

  tmpwd<-getwd()
  setwd("R/shiny_aclim/ACLIM2_indices")
  shiny::runApp("app.R")
  setwd(tmpwd)
  # alternatively you can extract the data you want using the get_var()function

  df <- get_var(typeIN = "annual",plotvar = "temp_bottom5m",plothist = F)

  df$plot
  head(df$dat)

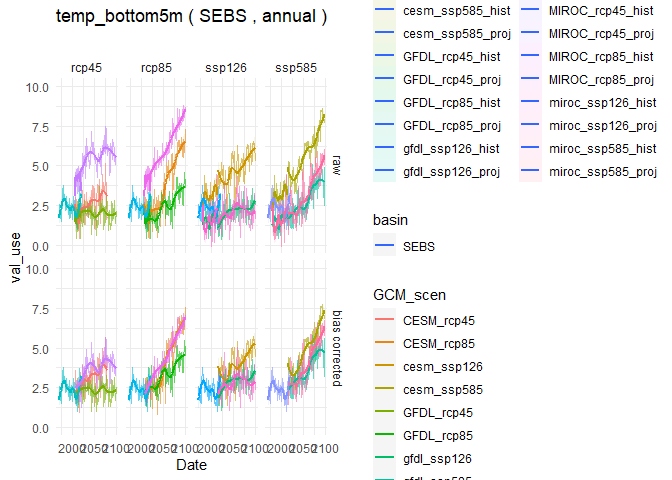

“Raw (top row) and bias corrected (bottom row)bottom temperature indices based on survey replicated Level3 outputs for the SEBS”

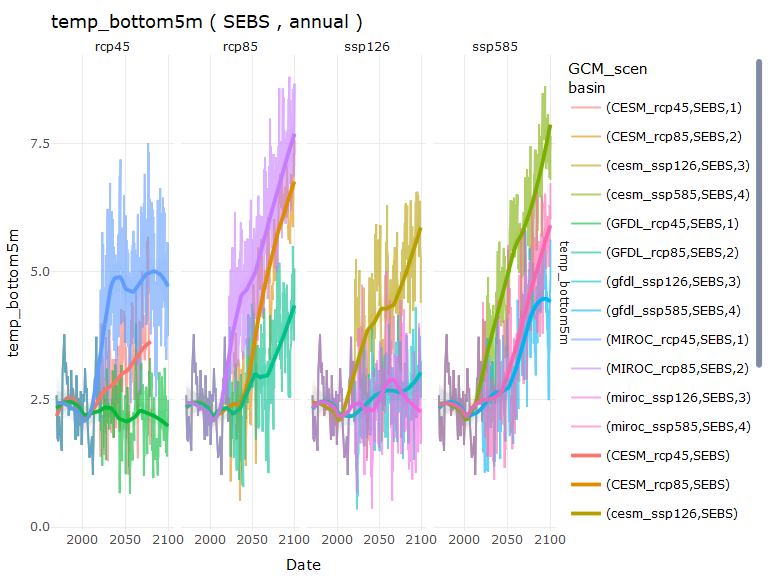

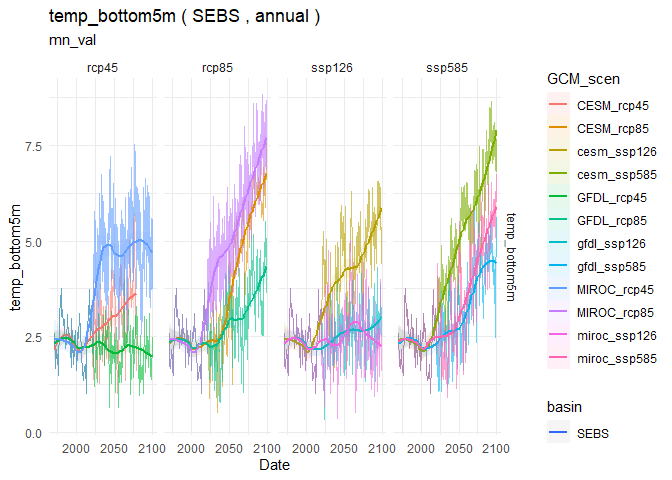

4.1 Continuous timeseries of hind + fut

    suppressMessages(source("R/make.R"))

    scens   <- c("ssp126", "ssp585")
    GCMs    <- c("miroc", "gfdl", "cesm" )

  # get the variable you want:
      df <- get_var( typeIN    = "annual",
                     plotvar   = "temp_bottom5m",
                     bcIN      = c("raw","bias corrected"),
                     CMIPIN    = c("K20P19_CMIP5","K20P19_CMIP6"),
                     plothist  = T,  # ignore the hist runs
                     removeyr1 = T)  # "Remove first year of projection ( burn in)")

      df$plot+coord_cartesian(ylim = c(0, 10))

      head(df$dat)

  # concat the hind and fut runs by removing years from projection
     stitchDate <- "2020-12-30"

  newdat <- stitchTS(dat = df$dat,
                   maxD  = stitchDate)

  # newdat has the full set of data
  # select miroc_ssp126
  head(newdat%>%dplyr::filter(GCM_scen==paste0(GCMs[1],"_",scens[1])))
  tail(newdat%>%dplyr::filter(GCM_scen==paste0(GCMs[1],"_",scens[1])))

  pp <- plotTS(newdat%>%mutate(mn_val=val_use) )
  pp

  # plot it interactively
  plotly::ggplotly(pp)

4.2 NRS indices (André)

The target indices for NRS include cold pool, bottom temperature, wind, SEBS and NEBS, during the growing season (May-August)

Cold pool (1.5degC)coverage in the northern nursery area based on summer bottom trawl survey data. Northern nursery area is approx strata 10& 20, however these are likely correlated with overall coldpool so we used the annual cp index.
Winds in the northern nursery area during the larval draft period (April1-June30) Cooper et al. 2019.
pH in the spawning grounds during Jan – March.
Summer (May-August) SST and BT in the SEBS

Hindcast values from 1970-2019 were stitched the operational hindcast (2019-2022) and ACLIM projections from 2022-2100 to generate the indices for CMIP5 and CMIP6.

  # to access these scripts go to https://github.com/kholsman/ACLIM2/tree/main/R/sub_fun

 source("R/sub_scripts/make_NRS_indices.R")
 source("R/sub_scripts/make_NRS_indices_raw.R")

4.3 monthly indices (Andy)

  suppressMessages(source("R/make.R"))

  # preview possible variables
  load(paste0("Data/out/K20P19_CMIP6/allEBS_means/ACLIM_monthly_hind_mn.Rdata"))
  varall  <- unique(ACLIM_monthly_hind$var)
  varall

  scens   <- c("ssp126","ssp585")
  GCMs    <- c("miroc","gfdl",  "cesm" )
  varlist <- c("temp_bottom5m","fracbelow2","uEast_surface5m")

  # get the variable you want:
  df <- get_var( typeIN    = "annual",
                  CMIPIN    = "K20P19_CMIP6",
                  plotvar   = "uEast_surface5m",
                  bcIN      = "bias corrected",
                  plotbasin    = c("SEBS"),
                  GCMIN     = c("miroc" ,"gfdl" , "cesm" ),
                  plothist  = F,  # ignore the hist runs
                  removeyr1 = T)  #"Remove first year of projection ( burn in)")

  df <- get_var( typeIN    = "monthly",
                 CMIPIN    = "K20P19_CMIP6",
                 monthIN   = 2,
                 plotvar   = "temp_bottom5m",
                 bcIN      = "bias corrected",
                 plothist  = F,  # ignore the hist runs
                 removeyr1 = T)  #"Remove first year of projection ( burn in)")


  head(df$dat)
  df$plot

  # concat the hind and fut runs by removing years from projection
  maxDin <- max(as.vector(df$dat%>%dplyr::filter(sim_type=="hind")%>%
                            ungroup()%>%dplyr::select(mnDate))[[1]])

  newdat <- stitchTS(dat = df$dat,
                   maxD  = maxDin)

  # newdat has the full set of data
  # select miroc_ssp126
  head(newdat%>%dplyr::filter(GCM_scen==paste0(GCMs[1],"_",scens[1])))
  tail(newdat%>%dplyr::filter(GCM_scen==paste0(GCMs[1],"_",scens[1])))

  newdat$mn_val <- newdat$val_delta
  newdat$units <- ""
  pp  <- ggplot(newdat)+
            geom_line(aes(x=mnDate,y=mn_val,color= GCM_scen, linetype = basin),
                      alpha = 0.6,show.legend = FALSE)+
            geom_smooth(aes(x=mnDate,y=mn_val,color= GCM_scen,
                            fill=GCM_scen,linetype = basin),alpha=0.1,
                        method="loess",formula='y ~ x',span = .5,show.legend=T)+
            theme_minimal() +
            labs(x="Date",
                   y=paste(newdat$var[1],"(",newdat$units[1],")"),
                   subtitle = "",
                   legend = "",
                   title = paste(newdat$var[1],"(",newdat$basin[1],",",newdat$type[1],")"))+
          scale_color_discrete()+
          facet_grid(scen~.)
  pp
  # plot it interactively
  plotly::ggplotly(pp)

4.4 weekly indices (Jon)

  suppressMessages(source("R/make.R"))

  # preview possible variables
  load(paste0("Data/out/K20P19_CMIP6/allEBS_means/ACLIM_weekly_hind_mn.Rdata"))
  varall  <- unique(ACLIM_weekly_hind$var)
  varall


  scens   <- c("ssp126","ssp585")
  GCMs    <- c("miroc","gfdl",  "cesm" )
  varlist <- c("temp_bottom5m","fracbelow2","uEast_surface5m")

  # get the variable you want:
  df <- get_var( typeIN    = "weekly",
                 plotvar   = "temp_bottom5m",
                 bcIN      = "bias corrected",
                 plothist  = F,  # ignore the hist runs
                 removeyr1 = T)  #"Remove first year of projection ( burn in)")

  df$plot
  head(df$dat)

  ggplot(df$dat%>%filter(basin=="SEBS"))+ geom_line(aes(x=jday, y= mn_val, color=factor(year)))+facet_wrap(GCM_scen_sim~.)

  # concat the hind and fut runs by removing years from projection
  maxDin <- max(as.vector(df$dat%>%dplyr::filter(sim_type=="hind")%>%dplyr::select(mnDate))[[1]])

  newdat <- stitchTS(dat = df$dat,
                   maxD  = maxDin)

  # newdat has the full set of data
  # select miroc_ssp126
  head(newdat%>%dplyr::filter(GCM_scen==paste0(GCMs[1],"_",scens[1])))


  pp  <- ggplot(newdat)+
            geom_line(aes(x=mnDate,y=mn_val,color= GCM_scen, linetype = basin),
                      alpha = 0.6,show.legend = FALSE)+
            geom_smooth(aes(x=mnDate,y=mn_val,color= GCM_scen,
                            fill=GCM_scen,linetype = basin),alpha=0.1,
                        method="loess",formula='y ~ x',span = .5,show.legend=T)+
            theme_minimal() +
            labs(x="Date",
                   y=paste(newdat$var[1],"(",newdat$units[1],")"),
                   subtitle = "",
                   legend = "",
                   title = paste(newdat$var[1],"(",newdat$basin[1],",",newdat$type[1],")"))+
          scale_color_discrete()+
          facet_grid(scen~.)
  # plot it
  pp
  # plot it interactively
  plotly::ggplotly(pp)

4.5 Salmon index (Ellen)

  1. temperature_surface5m for months 9:10 and strata 70 & 71
  2. NW direction for months 5:6 and strata 71
  3. temperature_surface5m for months 7:10 and strata 90,61,62
 # loads packages, data, setup, etc.
  suppressMessages( suppressWarnings(source("R/make.R")))

# get the variable you want:
      df <- get_var( typeIN    = "monthly",
                     monthIN   = 9:10,
                     plotvar   = "temp_bottom5m",
                     bcIN      = c("raw","bias corrected"),
                     CMIPIN    = "K20P19_CMIP6",
                     plothist  = T,  # ignore the hist runs
                     removeyr1 = T)  # "Remove first year of projection ( burn in)")

      df$plot+coord_cartesian(ylim = c(0, 7))
      head(df$dat)

  # concat the hind and fut runs by removing years from projection
     stitchDate <- "2020-12-30"

  newdat <- stitchTS(dat = df$dat,
                   maxD  = stitchDate)

  # newdat has the full set of data
  # select miroc_ssp126
  head(newdat%>%dplyr::filter(GCM_scen==paste0(GCMs[1],"_",scens[1])))
  tail(newdat%>%dplyr::filter(GCM_scen==paste0(GCMs[1],"_",scens[1])))

  pp <- plotTS(newdat )
  pp

4.6 make CEATTLE indices (Kir)

source("R/sub_scripts/make_ceattle_indices.R")
# now jump down to make .dat file

4.7 quick(er) bias correction for cell by cell data (Liz)

 #  setwd("D:/GitHub_cloud/ACLIM2")
 # loads packages, data, setup, etc.
  suppressMessages( suppressWarnings(source("R/make.R")))


# load the strata x weekly bias corrected values ("fut") for each gcm in the cmip6
  cmipfldr <- "K20P19_CMIP6"
  gcmcmipL <- c("B10K-K20P19_CMIP6_miroc",
                    "B10K-K20P19_CMIP6_gfdl",
                    "B10K-K20P19_CMIP6_cesm")
i<- 0
for(scen in c("ssp126","ssp585")){
  for (gcmcmip in gcmcmipL){
  i <- i+ 1
  cat(" -- loading ", gcmcmip, " ",scen,"\n")
  # extract gcm and cmip:

  mod   <- (strsplit(gcmcmip,"_")[[1]])[1]
  CMIP  <- strsplit(gcmcmip,"_")[[1]][2]
  GCM   <- strsplit(gcmcmip,"_")[[1]][3]

  # can be either ssp 126 or 585, the hist is only specific to the gcm (eg. cesm)
  load(file.path("Data/out",cmipfldr,"BC_ACLIMregion", paste0("ACLIMregion_",gcmcmip,"_",scen,"_BC_fut.Rdata")))

   # grab the mean strata x weekly values for bias correcting the grid
  sub_BC <- fut%>%
    dplyr::select(sim, var,  season,mo,wk,lognorm, basin, strata, mnVal_hind,mnVal_hist,sf_wk)%>%
    dplyr::distinct(sim, var, season,mo,wk,lognorm, basin, strata, mnVal_hind,mnVal_hist,sf_wk, .keep_all= TRUE)%>%
    mutate(GCM = GCM, CMIP=CMIP, mod = mod,scen =scen)%>%ungroup()
   #dplyr::summarize_at(c("mnVal_hind", "mnVal_hist","sf_wk"), mean, na.rm=T)
   if(i ==1){
     mnVal_lookup <- sub_BC
   }else{
     mnVal_lookup <- rbind(mnVal_lookup,sub_BC)
   }
    rm(list=c("sub_BC","fut"))
  }
}

  # check that there are 3 gcms x 2 scens:, vals are the same for both scens within a gcm:
    mnVal_lookup%>%filter(strata == 70,var=="aice", wk==1)


  # save the lookup table:
  if(!dir.exists(file.path("Data/out",cmipfldr,"mnVal_lookup")))
   dir.create(file.path("Data/out",cmipfldr,"mnVal_lookup"))

   fl <- file.path("Data/out",cmipfldr,"mnVal_lookup")
   nm <- paste(cmipfldr,"_BC_mnVal_lookup.Rdata",sep="_")
   save(mnVal_lookup,file=file.path(fl,nm))

   # now for CMIP5
   #----------------------------------------------------------------
   # load the strata x weekly bias corrected values ("fut") for each gcm in the cmip6
  cmipfldr <- "K20P19_CMIP5"
  gcmcmipL <- c("B10K-K20P19_CMIP5_MIROC",
                     "B10K-K20P19_CMIP5_GFDL",
                     "B10K-K20P19_CMIP5_CESM")
i<- 0
for(scen in c("rcp45","rcp85")){
  for (gcmcmip in gcmcmipL){
  i <- i+ 1
  cat(" -- loading ", gcmcmip, " ",scen)
  # extract gcm and cmip:

  mod   <- (strsplit(gcmcmip,"_")[[1]])[1]
  CMIP  <- strsplit(gcmcmip,"_")[[1]][2]
  GCM   <- strsplit(gcmcmip,"_")[[1]][3]

  # can be either ssp 126 or 585, the hist is only specific to the gcm (eg. cesm)
  load(file.path("Data/out",cmipfldr,"BC_ACLIMregion", paste0("ACLIMregion_",gcmcmip,"_",scen,"_BC_fut.Rdata")))

   # grab the mean strata x weekly values for bias correcting the grid
  sub_BC <- fut%>%
    dplyr::select(sim, var,  season,mo,wk,lognorm, basin, strata, mnVal_hind,mnVal_hist,sf_wk)%>%
    dplyr::distinct(sim, var, season,mo,wk,lognorm, basin, strata, mnVal_hind,mnVal_hist,sf_wk, .keep_all= TRUE)%>%
    mutate(GCM = GCM, CMIP=CMIP, mod = mod,scen =scen)%>%ungroup()
   #dplyr::summarize_at(c("mnVal_hind", "mnVal_hist","sf_wk"), mean, na.rm=T)
   if(i ==1){
     mnVal_lookup <- sub_BC
   }else{
     mnVal_lookup <- rbind(mnVal_lookup,sub_BC)
   }
    rm(list=c("sub_BC","fut"))
  }
}

  # check that there are 3 gcms:
    mnVal_lookup%>%filter(strata == 70,var=="aice", wk==1)


  # save the lookup table:
  if(!dir.exists(file.path("Data/out",cmipfldr,"mnVal_lookup")))
   dir.create(file.path("Data/out",cmipfldr,"mnVal_lookup"))

   fl <- file.path("Data/out",cmipfldr,"mnVal_lookup")
   nm <- paste(cmipfldr,"_BC_mnVal_lookup.Rdata",sep="_")
   save(mnVal_lookup,file=file.path(fl,nm))

Now with the lookup tables generated, combine with the cell by cell data and bias correct:

  #  setwd("D:/GitHub_cloud/ACLIM2")
  # loads packages, data, setup, etc.
  suppressMessages( suppressWarnings(source("R/make.R")))


  # load the strata x weekly bias corrected values ("fut") for each gcm in the cmip6
  cmipfldr <- "K20P19_CMIP6"
  fl <- file.path("Data/out",cmipfldr,"bc_mnVals")
   nm <- paste(cmipfldr,"_BC_mnVal_lookup.Rdata",sep="_")
  load(file.path(fl,nm))  # load mnVal_lookup

  # some dummy data
  liz_dat <- data.frame(var ="aice",
                        mn_val = inv.logit(rnorm(200,0, .4)),
                        strata = factor(70,levels = levels(mnVal_lookup$strata)),
                        cell = 1:200,
                        time = as.Date("1982-04-23"))


  liz_dat <- liz_dat%>%
    dplyr::mutate(tmptt =strptime(as.Date(time),format="%Y-%m-%d"))%>%
    dplyr::mutate(
      yr     = date_fun(tmptt,type="yr"), # first get week to match lookup
      mo     = date_fun(tmptt,type="mo"),
      jday   = date_fun(tmptt,type="jday"),
      season = date_fun(tmptt,type="season"),
      wk     = date_fun(tmptt,type="wk"))%>%select(-"tmptt")%>%
  left_join(mnVal_lookup)  # now merge with lookup:

  # Now bias correct based on which normlist val to use:
  log_adj <- 1e-4
  roundn  <- 5
      if(!any(liz_dat$lognorm%in%c("none","log","logit"))){
        stop("bias_correct_new_strata: problem with lognorm, must be 'none', 'log' or 'logit' for each var")
      }else{
        sdfun<-function(x){
          x[x==0]   <- 1
          x[x==Inf] <- 1
          x
        }

        # normally distrib values:
        subA <- liz_dat%>%filter(lognorm=="none")%>%
          mutate(
          raw_val   = mn_val,
          mnval_adj = mn_val,
          #  sf_wk  = abs(  sdVal_hind/  sdVal_hist),
          #  sf_mo  = abs(  sdVal_hind_mo/  sdVal_hist_mo),
          #  sf_yr  = abs(  sdVal_hind_yr/  sdVal_hist_yr))%>%
          # mutate_at(c("sf_wk","sf_mo","sf_yr"),sdfun)%>%
          #mutate(
           val_delta =   mnVal_hind + (( mn_val-  mnVal_hist)),
           # val_bcmo  =   mnVal_hind + ( sf_mo*( mn_val- mnVal_hist)),
           # val_bcyr  =   mnVal_hind + ( sf_yr*( mn_val- mnVal_hist)),
           val_bcwk  =   mnVal_hind + ( sf_wk*( mn_val- mnVal_hist)))

        # 0-1 distributed values:
        subB<- liz_dat%>%filter(lognorm=="logit")%>%
          mutate(
          raw_val   = mn_val,
          mnval_adj = inv.logit(mn_val)-log_adj,
          #   sf_wk  = abs(  sdVal_hind/  sdVal_hist),
          #   sf_mo  = abs(  sdVal_hind_mo/  sdVal_hist_mo),
          #   sf_yr  = abs(  sdVal_hind_yr/  sdVal_hist_yr))%>%
          # mutate_at(c("sf_wk","sf_mo","sf_yr"),sdfun)%>%
          # mutate(
            val_delta =   round(inv.logit(mnVal_hind + (( mn_val-  mnVal_hist)))-log_adj,roundn),
            # val_bcmo  =   round(inv.logit(mnVal_hind + ( sf_mo*( mn_val- mnVal_hist)))-log_adj,roundn),
            # val_bcyr  =   round(inv.logit(mnVal_hind + ( sf_yr*( mn_val- mnVal_hist)))-log_adj,roundn),
            val_bcwk  =   round(inv.logit(mnVal_hind + ( sf_wk*( mn_val- mnVal_hist)))-log_adj,roundn))%>%
          mutate_at(c("val_delta","val_bcwk"),function(x){x[x<0]<-0;  x  })
          #mutate_at(c("val_delta","val_bcwk","val_bcmo","val_bcyr"),function(x){x[x<0]<-0;  x  })

        # log norm dist. values
        subC<- liz_dat%>%filter(lognorm=="log")%>%
          mutate(
          raw_val   = mn_val,
          mnval_adj = log(mn_val)-log_adj,
          # sf_wk  = abs(  sdVal_hind/  sdVal_hist),
          #   sf_mo  = abs(  sdVal_hind_mo/  sdVal_hist_mo),
          #   sf_yr  = abs(  sdVal_hind_yr/  sdVal_hist_yr))%>%
          # mutate_at(c("sf_wk","sf_mo","sf_yr"),sdfun)%>%
          # mutate(
            val_delta =   round(exp(mnVal_hind + (( mn_val-  mnVal_hist)))-log_adj,roundn),
            # val_bcmo  =   round(exp(mnVal_hind + ( sf_mo*( mn_val- mnVal_hist)))-log_adj,roundn),
            # val_bcyr  =   round(exp(mnVal_hind + ( sf_yr*( mn_val- mnVal_hist)))-log_adj,roundn),
             val_bcwk  =   round(exp(mnVal_hind + ( sf_wk*( mn_val- mnVal_hist)))-log_adj,roundn))%>%
          mutate_at(c("val_delta","val_bcwk"),function(x){x[x<0]<-0;  x  })
          # mutate_at(c("val_delta","val_bcwk","val_bcmo","val_bcyr"),function(x){x[x<0]<-0;  x  })

      }
    futout <- rbind(subA, subB, subC)%>%
      rename(
        # val_biascorrectedmo = val_bcmo,
        # val_biascorrectedyr = val_bcyr,
        val_biascorrectedwk = val_bcwk)%>%
      mutate(val_biascorrected = val_biascorrectedwk,
        mn_val=round(mnval_adj,roundn))%>%select(-mnval_adj)
    rm(list=c("subA","subB","subC"))
  # plot it interactively
  plotly::ggplotly(pp)

5 Output to .dat file (ADMB/ TMB users)

For CEATTLE I create a .dat file that is read into the ADMB script. That .dat file includes the bias corrected values (e.g., bottom temperature in deg C) used for the bioenergetics and temperature-dependent growth functions as well as Z-score (scaled) values used as covariates on the recruitment function. The section below will step through that .dat file creation for a subset of variables as well as demo chunks of ADMB code for reading that into a ADMB based model.

5.1 Use R to make .dat file using ACLIM suite

# rm(list=ls())
# 1 -- create .dat filename & path
# 2 -- rescale (Z-score) data and get variables
# 3 -- write data to hind .dat file
# 3 -- write data to fut  .dat file

# 1 -- create .dat filename & path
# -------------------------------------
suppressMessages(source("R/make.R"))

# load the datafile:
load(file="Data/out/CEATTLE_indices/ceattle_vars_op.Rdata")
load(file="Data/out/CEATTLE_indices/ceattle_vars_wide_op.Rdata")

# switches
thisYr <- format(Sys.time(), "%Y")
today  <- format(Sys.time(), "%b %d, %Y")
lastyr_hind <- 2021 #as.numeric(thisYr)  #2021
hind_yrs    <- 1979:2022   # define the years of your estimation model
fut_yrs     <- 2023:2099   # define the years of your projections
stitchDate     <- "2019-12-30"  # last date of the ACLIM hindcast
stitchDate_op  <- "2022-05-16"  #last operational hindcast date
log_adj      <- 1e-4
zscore_years <- 1980:2010  # years to recenter z score on
plotbasin    <- "SEBS"

# Define the name for the .dat file
fn      <- "ACLIM2_CMIP6_short_delta_bc.dat"
fn_long <- "ACLIM2_CMIP6_delta_bc.dat"

archive_old <- T  # Archive the older version of the .dat file?
normlist    <- read.csv(file=file.path(Rdata_path,"../normlist.csv"))

outpath     <- "Data/out/ADMB_datfiles"
if(!dir.exists(outpath)) dir.create(outpath)

# define hind and fut data files
fndat_hind  <- file.path(outpath,paste("KKHhind_",fn,sep=""))
fndat_fut   <- file.path(outpath,paste("KKHfut_",fn,sep=""))

fndat_hind_long  <- file.path(outpath,paste("KKHhind_",fn_long,sep=""))
fndat_fut_long   <- file.path(outpath,paste("KKHfut_",fn_long,sep=""))

fndat_hind2 <- file.path(outpath,paste("hind_",fn,sep=""))
fndat_fut2  <- file.path(outpath,paste("fut_",fn,sep=""))

# create and archive .dat files
outfile    <- fndat_fut
if(file.exists(outfile)&archive_old){
  # archive older version
  archivefl <- paste0(substr(outfile,start=1,stop=nchar(outfile)-4),
                      format(Sys.time(), "%Y%m%d_%H%M%S"),".dat")
  file.rename(outfile, archivefl)
  #file.remove(outfile)
}

file.create(outfile)
outfile  <- fndat_hind
if(file.exists(outfile)&archive_old){
  # archive older version
  archivefl <- paste0(substr(outfile,start=1,stop=nchar(outfile)-4),
                      format(Sys.time(), "%Y%m%d_%H%M%S"),".dat")
  file.rename(outfile, archivefl)
  #file.remove(outfile)
}
file.create(outfile)



# 2 -- rescale (Z-score) data and get variables
# ----------------------------------------------
CMIPS <- c("K20P19_CMIP6","K20P19_CMIP5")

# preview possible variables
varall  <- unique(ceattle_vars_op$var)
varall


# vars
ceattle_vars_op
ceattle_vars_wide_op

grpby2 <- c("type","var","basin",
               "year","sim","sim_type",
               "bc")

#define hind and fut:
hind <- ceattle_vars_op%>%filter(year%in%hind_yrs,sim_type=="hind")%>%
  ungroup()

mnhind <- hind%>%
  group_by(season,var,basin)%>%
  summarize(mnhind = mean(val_use,na.rm=T),
         sdhind = sd(val_use, na.rm=T))%>%ungroup()
hind <- hind%>%left_join(mnhind)%>%
  mutate(val_use_scaled = (val_use-mnhind)/sdhind)%>%
    select(all_of(c(grpby2,"val_use","val_use_scaled")))%>%distinct()%>%
              ungroup()


hind <- hind%>%full_join(expand.grid(year= hind_yrs, var = unique(hind$var)))


fut  <- ceattle_vars_op%>%
  filter(year%in%fut_yrs)

#temporary fix: Add Large Zoop for CESM RCP85
tmp_fut <-fut%>%filter(GCM_scen=="cesm_rcp85")
grplist<-c("NCaS_integrated","EupS_integrated")

if(length(grep("largeZoop_integrated",unique(tmp_fut$var_raw)) )==0){
  tmp_futA <- tmp_fut[grep(grplist[1],tmp_fut$var),]
  tmp_futB <- tmp_fut[grep(grplist[2],tmp_fut$var),]
  tmp_futA$var2 <- grplist[1]
  tmp_futB$var2 <- grplist[2]
   sumat<-c("val_use","mnVal_hind","val_delta","val_biascorrected",
            "val_raw","mn_val")
   tmp_var_zoop    <- rbind(tmp_futA,tmp_futB)%>%
      dplyr::filter(var2%in%c("NCaS_integrated","EupS_integrated"))%>%
      dplyr::group_by(
        var,
        season,
        type,
        basin,
        year,
        sim,
        gcmcmip,
        GCM,
        scen,
        sim_type,
        bc,
        GCM_scen,
        GCM_scen_sim,
        CMIP,
        GCM2,
        GCM2_scen_sim,
        jday,mnDate,var_raw,lognorm,var2)%>%
     summarise_at(all_of(sumat),mean,na.rm=T)%>%
     mutate(var_raw="largeZoop_integrated",
            var = paste0(season,"_largeZoop_integrated"))%>%select(-var2)%>%
      summarise_at(all_of(sumat),sum,na.rm=T)%>%relocate(names(fut))%>%
      distinct()

   fut <- rbind(fut, tmp_var_zoop)

}
  fut  <- fut%>%left_join(mnhind)%>%
    mutate(val_use_scaled = (val_use-mnhind)/sdhind)%>%ungroup()

data.frame(fut%>%filter(var=="Winter_largeZoop_integrated",GCM_scen=="cesm_rcp85"))
data.frame(fut%>%ungroup()%>%group_by(GCM_scen)%>%summarise(count = length(var)))

fut <- fut%>%full_join(expand.grid(year= fut_yrs,
                                   var = unique(fut$var),
                                   GCM_scen = unique(fut$GCM_scen)))
data.frame(fut%>%ungroup()%>%group_by(GCM_scen)%>%summarise(count = length(var)))
  data.frame(fut%>%filter(var=="Winter_largeZoop_integrated",GCM_scen=="cesm_rcp85"))

# now identify which covars are highly correlated

  d_wide   <- ceattle_vars_op%>%
      filter(year<=lastyr_hind)%>%
      left_join(mnhind)%>%
      mutate(val_use_scaled = (val_use-mnhind)/sdhind)%>%ungroup()%>%
      group_by(across(all_of(grpby2)))%>%
      summarize_at(all_of(c("val_use_scaled")), mean, na.rm=T)%>%
      tidyr::pivot_wider(names_from = "var", values_from = "val_use_scaled")

  # calculate correlations and display in column format

  # define columns with meta data:
  col_meta <- which(colnames(d_wide)%in%grpby2)
  d_wide_dat <-d_wide[,-col_meta]
  num_col  <- ncol(d_wide[,-col_meta])
  out_indx <- which(upper.tri(diag(num_col)))
  cor_cols <- d_wide_dat%>%
    do(melt(cor(.,
                method="spearman",
                use="pairwise.complete.obs"),
            value.name="cor")[out_indx,])

  corr     <- cor(na.omit(d_wide_dat))

  long_dat <- reshape2::melt(corr,variable.name = "variable") %>%
    as.data.frame()

  # plot co variation between variables
  corplot <- long_dat %>%arrange(value)%>%
    ggplot(aes(x=Var1, y=Var2, fill=value)) +
    geom_raster() +
    scale_fill_viridis_c()+
    theme_minimal()+
    theme(axis.text.x = element_text(angle = 90))

  jpeg(filename = file.path("Data/out/CEATTLE_indices/CEATTLE_indicescorplot.jpg"),
           width=8,height=7,units="in",res=350)
  print(corplot)
  dev.off()

  # # remove those where cov is high (temp by season and cold pool by season)
  # subset <- long_dat$>$filter(abs(value)<0.6)

# 3 -- write data to hind .dat file
# ------------------------------------


# CEATTLE uses a spp overlap index - you can skip this

overlapdat <- data.frame(
  atf_OL=c(0.9391937,0.8167094,0.808367,0.5926875,0.7804481,0.5559549,
           0.4006931,0.5881404,0.7856776,0.511565,0.6352048,0.5583476,
           0.5792738,0.5417657,0.8212887,0.6287613,0.4536608,0.6587292,
           0.4884194,0.8289379,0.4399257,0.5950167,0.6388434,0.6111834,
           0.8742649,0.7868746,0.8024257,0.6227457,0.4956742,0.4347917,
           0.4791108,0.4369006,0.5613625,0.4353015),
  south_OL=c(0.9980249,0.9390368,0.9959974,0.6130846,0.951234,0.5851891,
             0.4934879,0.641471,0.9809618,0.5596813,0.7196964,0.6754698,
             0.5774808,0.6041351,0.9406521,0.7949525,0.5306435,0.7977694,
             0.5345031,0.9879945,0.5079171,0.7148121,0.8997132,0.7340859,
             0.9962068,0.9627235,0.998043,0.8111,0.6087638,0.513057,0.5492621,
             0.4971361,0.665453,0.5969653)
)


includeOverlap <- F
overlap        <- matrix(1,3,length(sort(unique(hind$year))))
overlap_fut    <- array(1,c(3,length(unique(fut$GCM_scen))+1,length(sort(unique(fut$year)))))
if(includeOverlap){
  overlap[3,] <- overlapIN
  overlap[3,][overlap[3,]>1]<-1 #covs$BT2to6/covs$BT0to6
}

# replace NA values with the mean
shortlist <- c("Summer_temp_bottom5m","Winter_temp_bottom5m",
               "Winter_pH_depthavg","Summer_oxygen_bottom5m",
               "Summer_temp_surface5m",
               "Spring_Cop_integrated",
               "Fall_largeZoop_integrated")
hind_short <- hind%>%mutate(long_name=var)%>%
               filter(var%in%shortlist)
# Kir's .dat file
makeDat_hind(datIN   = hind_short,
             outfile = fndat_hind,
             value2use = "val_use",
             value2use_scaled = "val_use_scaled",
             NAVal     = "mean",
             nsppIN    = 3,
             overlapIN = overlap,
             nonScaled_covlist = c("Summer_temp_bottom5m","Summer_temp_surface5m"),
             Scaled_covlist    = unique(hind_short$var))

makeDat_fut( datIN             = fut%>%mutate(long_name=var)%>%
               filter(var%in%shortlist),
             hinddatIN         = hind%>%mutate(long_name=var)%>%
               filter(var%in%shortlist),
             outfile           = fndat_fut,
             value2use         = "val_use",
             value2use_scaled  = "val_use_scaled",
             NAVal             = "mean",
             nsppIN            = 3,
             last_nyrs_avg     = 10,
             overlapIN         = overlap_fut,  #(nspp,nsim+1,nyrs_fut)
             overlap_hind      = overlap,
             nonScaled_covlist = c("Summer_temp_bottom5m","Summer_temp_surface5m"),
             Scaled_covlist    = unique(hind_short$var))

# Kir's .dat file
makeDat_hind(datIN   = hind%>%mutate(long_name=var),
             outfile = fndat_hind_long,
             value2use = "val_use",
             value2use_scaled = "val_use_scaled",
             NAVal     = "mean",
             nsppIN    = 3,
             overlapIN = overlap,
             nonScaled_covlist = c("Summer_temp_bottom5m","Summer_temp_surface5m"),
             Scaled_covlist    = unique(hind$var))

makeDat_fut( datIN             = fut%>%mutate(long_name=var),
             hinddatIN         = hind%>%mutate(long_name=var),
             outfile           = fndat_fut_long,
             value2use         = "val_use",
             value2use_scaled  = "val_use_scaled",
             NAVal             = "mean",
             nsppIN            = 3,
             last_nyrs_avg     = 10,
             overlapIN         = overlap_fut,  #(nspp,nsim+1,nyrs_fut)
             overlap_hind      = overlap,
             nonScaled_covlist = c("Summer_temp_bottom5m","Summer_temp_surface5m"),
             Scaled_covlist    = unique(hind$var))


### Here's a generic version that doesn't include nspp and overla[]
# generic .dat file

makeDat_hind(datIN             = hind%>%mutate(long_name=var),
             outfile           = fndat_hind2,
             nsppIN            = NULL,
             overlapIN         = NULL,
             nonScaled_covlist = c("temp_bottom5m","temp_surface5m"  ),
             Scaled_covlist    = unique(hind$var))

# generic .dat file
makeDat_fut( datIN       = fut%>%mutate(long_name=var),
             hinddatIN         = hind,
             outfile           = fndat_fut2,
             nsppIN            = NULL,
             last_nyrs_avg     = 10,
             overlapIN         = NULL,  #(nspp,nsim+1,nyrs_fut)
             overlap_hind      = NULL,
             nonScaled_covlist = c("temp_bottom5m","temp_surface5m"  ),
             Scaled_covlist    = unique(hind$var))

6 APPENDIX A: Create & bias correct ACLIM2 indices

The following code shows how the ACLIM2 indices and bias correction was done. You do not need to re-run this (it is included so you can if you want to). To explore the indices skip to the next section.

  # --------------------------------------
  # SETUP WORKSPACE
  # rm(list=ls())
  # setwd("D:/GitHub_cloud/ACLIM2")
  # setwd("/Volumes/LaCie/GitHub_cloud/ACLIM2")
  # loads packages, data, setup, etc.
  source("R/sub_scripts/APPENDIX_A.R")

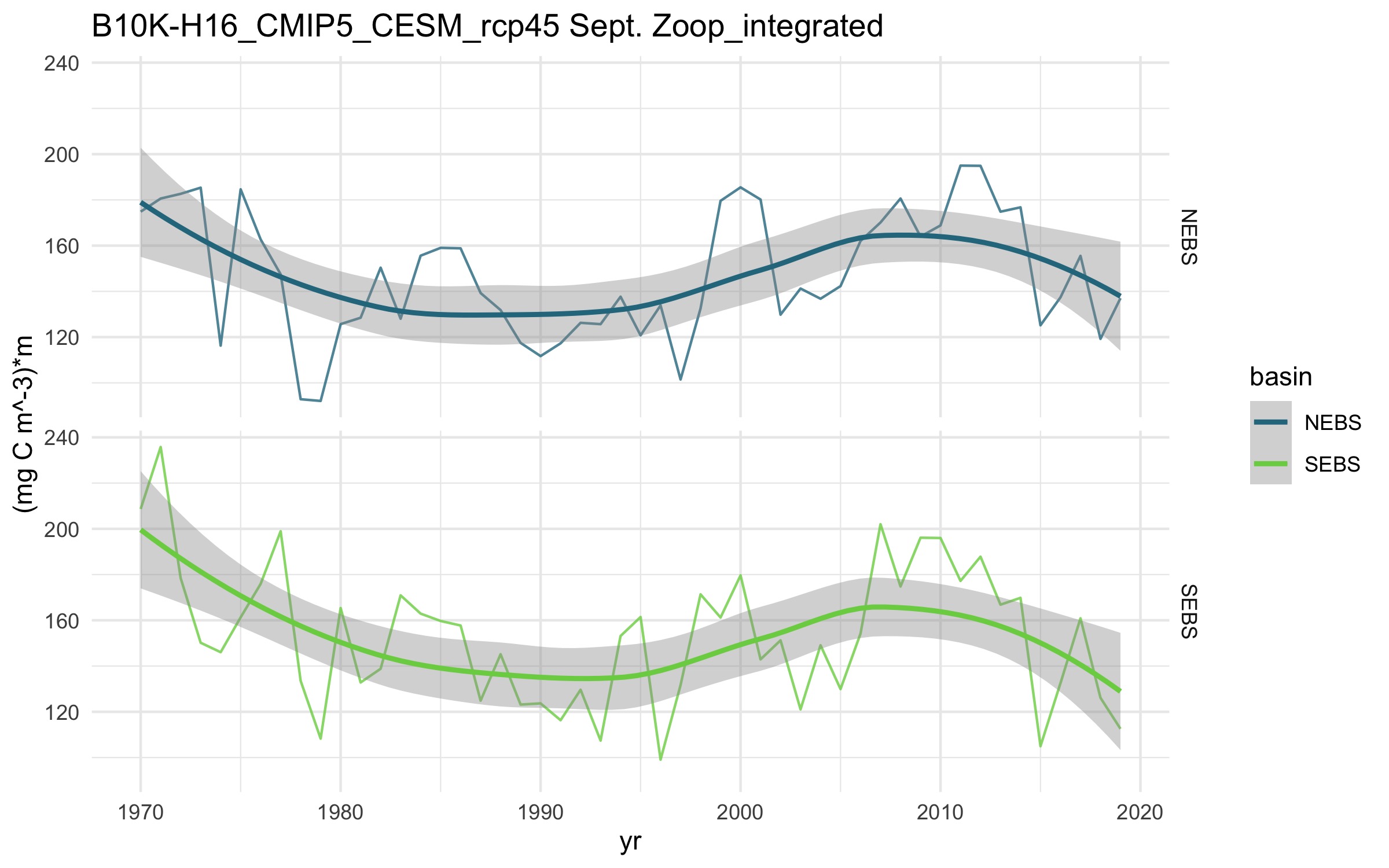

September large zooplankton integrated concentration

7 misc

7.1 strata and station plots

Strata areas from Kearney et al. 2021 Strata designations for survey replicated L3 indices

Sub-region designations for survey replicated L3 indices

\[B0^k_{input}= \bar{B0}^k_{(2004:2014)}\left(\frac{B0^{a}_{2015}}{\bar{B0}^a_{(2004:2014)}}\right) \] Where B0kinput is the unfished biomass used for setting inputs of (e.g., B0ktarget = 0.4B0kinput) and is determined by re-scaling the spawning stock biomass from the status quo assessment in 2015 (B0a2015) to the average model spawning stock biomass for your model between 2004-2014 (i.e., B0k) using the average unfished biomass from the stock assessment model during the same period (B0a).
